6437288-3
Manufacturer:
TE Connectivity
Mfr.Part #:
6437288-3
Datasheet:
Description:

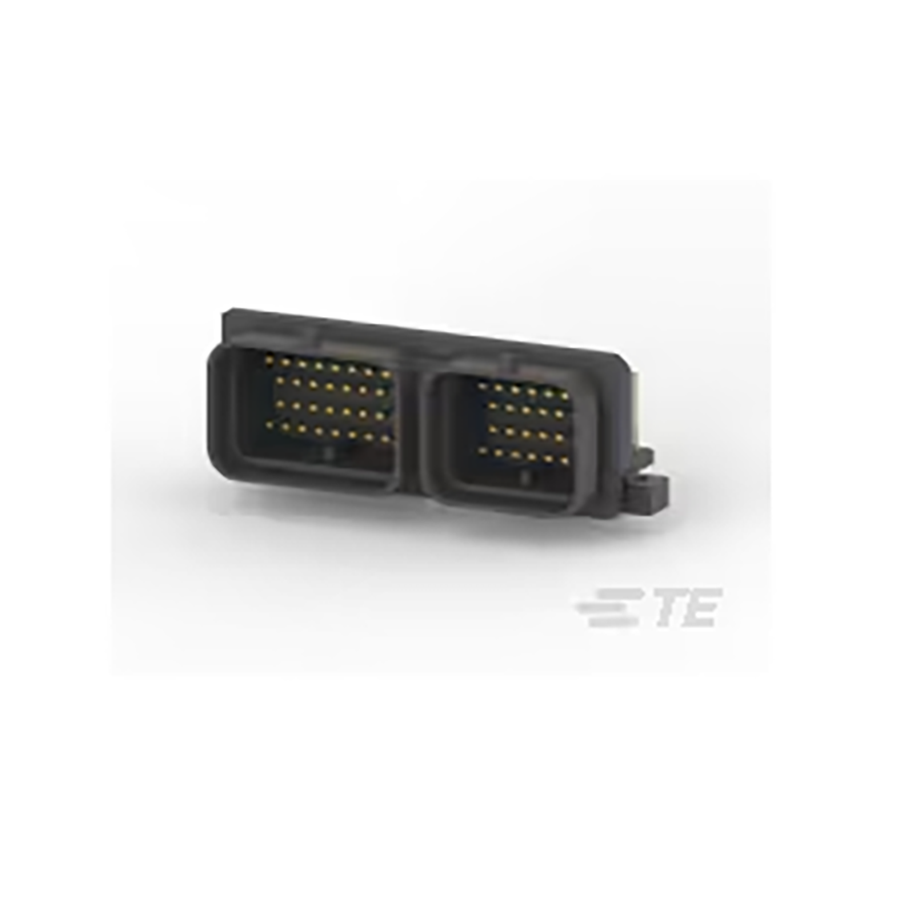

Headers and Wire Housings Through Hole Receptacle Number of Positions:60 Pitch:2.9972 mm
| Parameter | Value |
|---|---|
| Length | 36.5 mm |
| Width | 78.0034 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 60 |
| Height | 28.15 mm |
| Packaging | Tube |
| Voltage Rating | 250 V |
| Depth | 36.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.9972 mm |
| Max Voltage Rating (DC) | 250 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Receptacle (Female) |
| Shielding | Unshielded |
| Number of Contacts | 60 |
| ELV | Compliant |
| Connector Type | Receptacle |
| Number of Positions | 60 |
| Number of Rows | 4 |
| Housing Material | Polyester |
| Fastening Type | Ramp |
| Contact Mating Length | 7.0104 mm |
| Number of Signal Positions | 60 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 4 mm |
Stock: 33
Distributors
pcbx
pcbxUnit Price$6.89530
Ext.Price$6.89530
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.89530 | $6.89530 |
| 10 | $5.92493 | $59.24930 |
| 25 | $5.83174 | $145.79350 |
| 50 | $5.74001 | $287.00050 |
| 100 | $5.64967 | $564.96700 |
